Hoja de metal uncoiler enderezadora y servo carolina del norte, alimentador de 3 1 en

Automático de la máquina de liquidación

vender 3 1 en carolina del norte servo alimentador nivelador y desenrollador

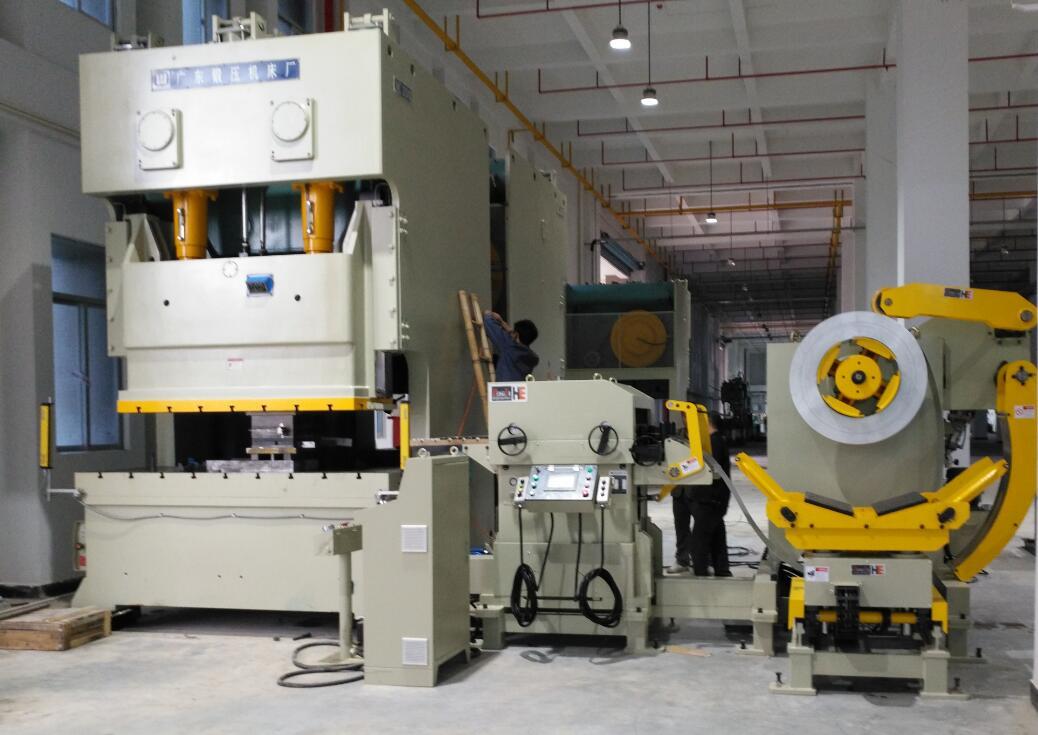

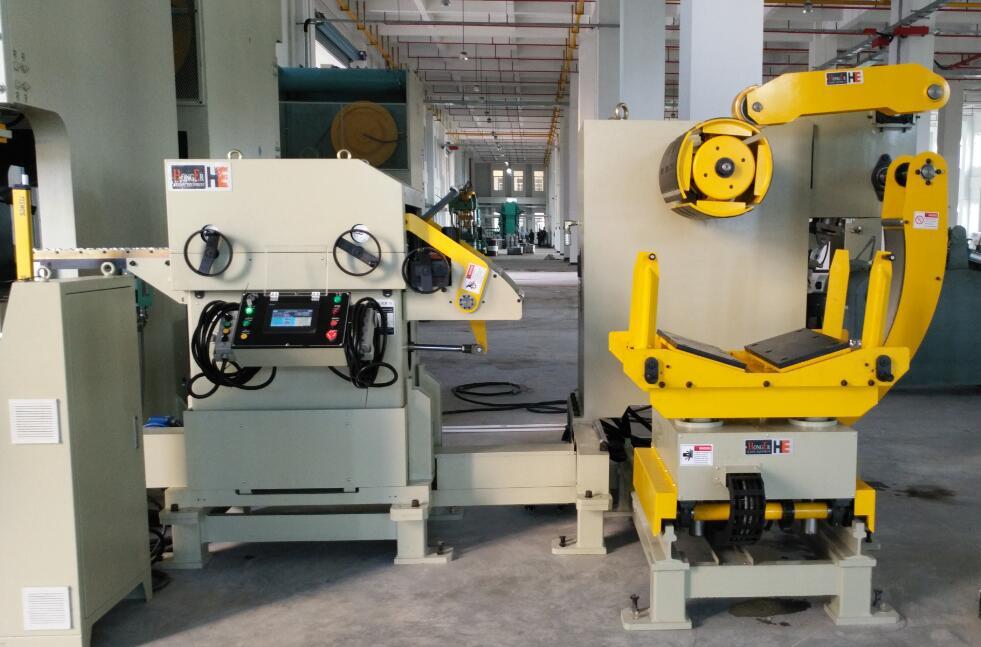

3 IN 1 Servo Straightener Feeder Uncoiler Machine Model GLK2-500

Press feeding & coil handling system for LED production

Width of material: 50-500mm

Thickness of mnaterial: 0.3-3.2mm

Max. coil weight: 5000kg

Coil I.D.: ø508mm

Coil O.D.: ø1200mm

Max. line speed: 16m/min

Feeding accurancy: ±0.15mm

Leveling roll: Upper 6 down 5

Feeding line height: 1150±100mm

Power supply: AC220V 50HZ / AC380V 50HZ

Air supply: 5kg/cm²

Uncoiling expansion: Hydraulic

Main motor: AC2.9KW

Uncoiler motor: AC2.2KW
